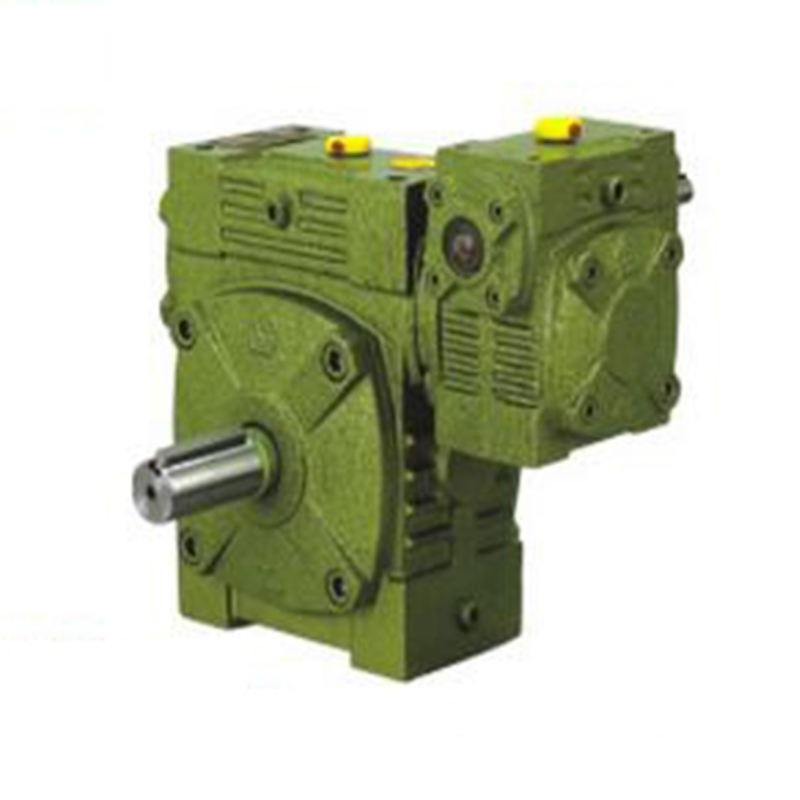

Speed Reduction Worm Gearbox Pulley For Conveying WPWE

Short Description:

The Jiahuang WPWE series worm gear reducer is a robust and efficient power transmission solution designed specifically for heavy-duty industrial applications. This series of worm gear reducers uses hardened steel worm gears and phosphor bronze worm gears, which have excellent wear resistance and load-bearing capacity, with an output torque range of 6 N.m to 6050 N.m. Its compact integral cast iron casing ensures structural rigidity and heat dissipation performance, and provides basic or universal installation configurations (foot mounting or flange mounting) as well as input/output shaft type selection. This series of reducers can operate in environments ranging from -40 ° C to 40 ° C, with a single-stage reduction ratio of 10-60 and a two-stage reduction ratio of 200-900. It is an ideal choice for industries such as mining, packaging, robotics, and automation.

Input power: 0.12~33.2kW
Size: 40-70,50-80,60-100,70-120,80-135,80-147,100-155,120-175,135-200,155-250
Ratio: 200,300,400,500,600,800,900
Color: green, blue, yellow, etc

CONTACT NOW Download

Product Detail

Product Tags

Product Introduction

The main difference between the WPWE series and the WPE series lies in their structural design and application scope. Although both are two-stage reducers, WPWE has a wider range of installation configurations (such as hollow shafts, dual input/output shafts) and a higher degree of modularity, which can be used for customized settings. The WPE series typically emphasizes standardized single-stage deceleration and simpler layouts, while the WPWE provides enhanced versatility for complex machinery that requires extreme ratios (such as up to 900:1) and stricter self-locking capabilities. In addition, WPWE typically employs advanced sealing and cooling solutions to address common heating issues in worm gear systems.

Product Name:	WPWE Gearbox	Ratio:	200,300,400,500,600,800,900

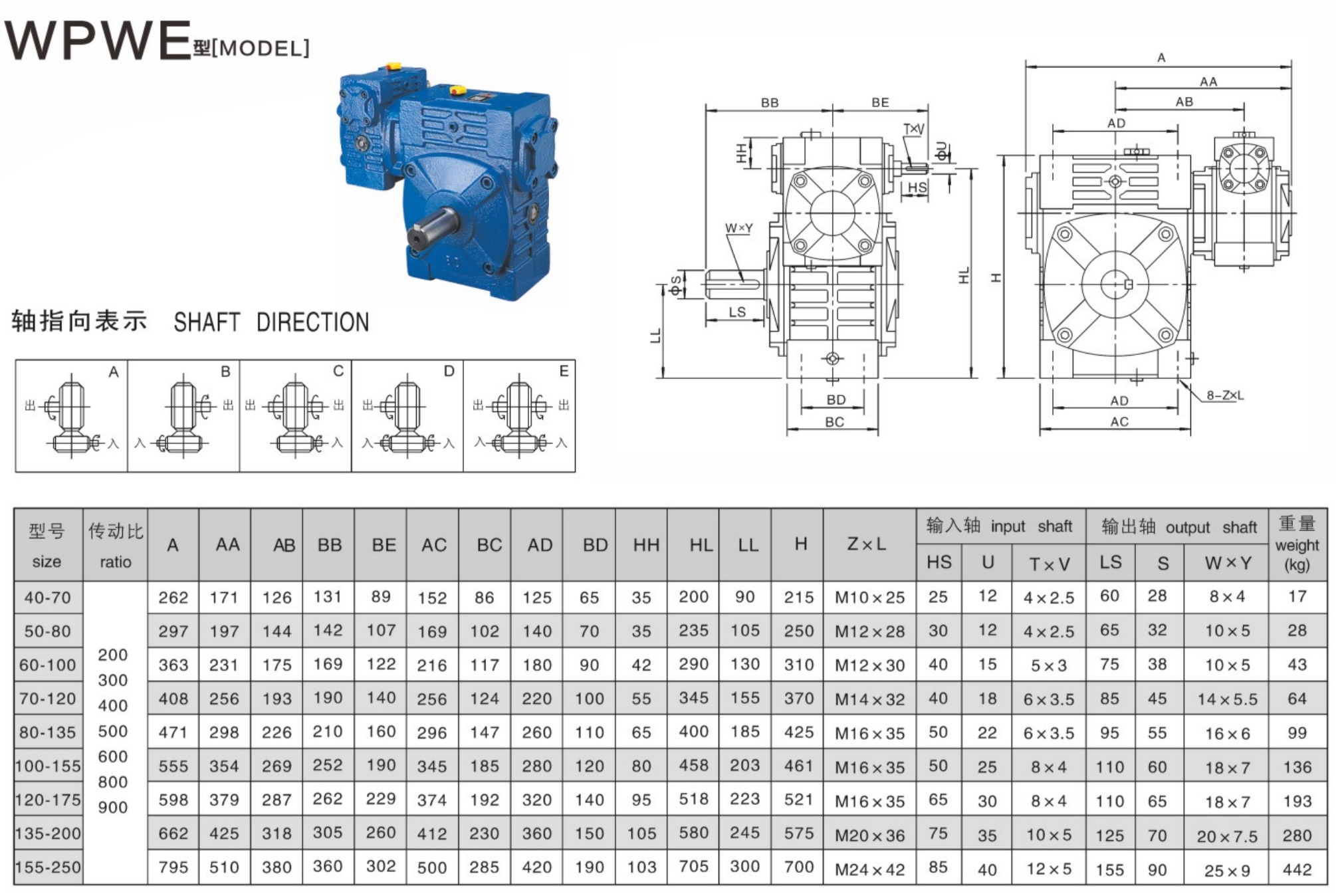

Model No.	40-70,50-80,60-100,70-120,80-135,80-147,100-155,120-175,135-200,155-250	Color:	Customized
In Power:	0.06kw-15kw	Output Torque:	<1050nm
Shell Material:	Die-Cast Cast Iron	Worm Wheel:	9-4
Bearing:	WWI, C&U	Oil Seal:	KSK
Shaft:	Carbon Steel 45#	Packing:	Carton and Wooden Case
Warranty:	1 Year	Origin:	Hangzhou Zhejiang
