Speed Power Reducer WPWX WP Single Stage Reducer Ratio 10 15 20 25 30 40 50 60

Short Description:

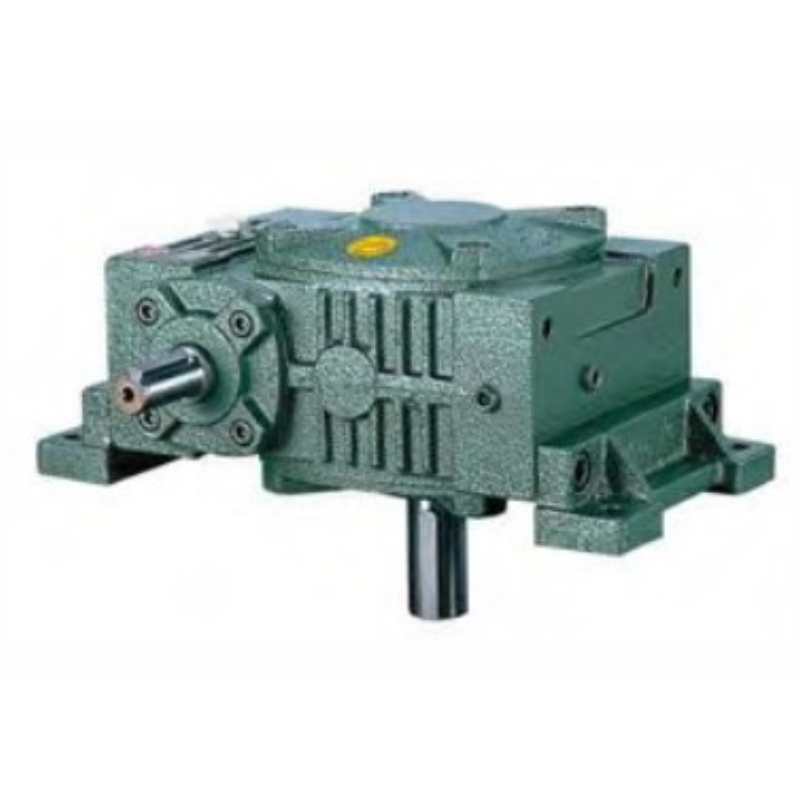

Jiahuang WPWX reducer is a multifunctional worm gear reducer designed specifically for harsh industrial applications. It has a compact structure, operates quietly, and has strong torque transmission capability. Suitable for industries such as mining, lifting, transportation, and chemical, it can operate efficiently within a temperature range of -40 ° C to 40 ° C.

Input power: 0.12~33.2kW
Size: 40, 50, 60, 70, 80, 100, 120, 135, 155, 175, 200, 250
Ratio: 10, 15, 20, 25, 30, 40, 50, 60
Color: green, blue, yellow, etc

CONTACT NOW Download

Product Detail

Product Tags

Product Introduction

Its hardened steel worm gear and bronze worm gear ensure its durability and wear resistance. The WPWX model supports bidirectional input rotation and offers a wide range of single-stage reduction ratios (such as 10-60), with a maximum input speed of 1500 RPM.

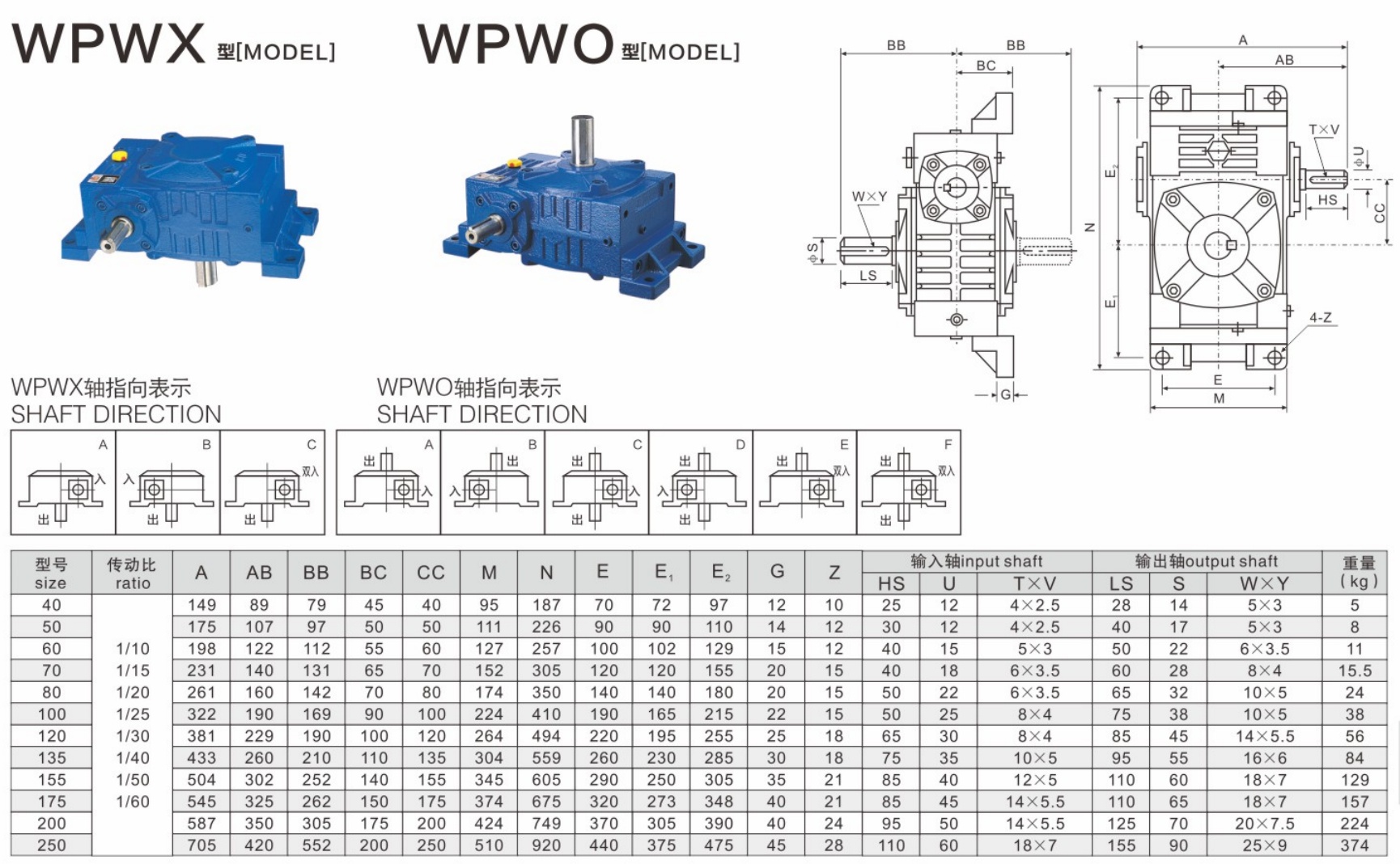

The main difference between Jiahuang WPWX and WPWO reducers lies in their mechanical interface and installation configuration. Although both have core performance characteristics such as high reduction ratio and similar structural materials, the WPWX series typically provides greater flexibility in the positioning and installation options of input and output shafts, including foot mounting or flange mounting. On the other hand, WPWO may emphasize alternative assembly forms or connection specifications to meet different installation space requirements or integration scenarios.

Product Name:	WPWX Gearbox	Ratio:	10,15,20,25,30,40,50,60
Model No.	40,50,60,70,80,100,120,135,155,175,200,250	Color:	Customized
In Power:	0.06kw-15kw	Output Torque:	<1050nm
Shell Material:	Die-Cast Cast Iron	Worm Wheel:	9-4
Bearing:	WWI, C&U	Oil Seal:	KSK
Shaft:	Carbon Steel 45#	Packing:	Carton and Wooden Case
Warranty:	1 Year	Origin:	Hangzhou Zhejiang
