Gearbox Reduction Drive WPWDKV Wp Pulley Reducer WP Horizontal Mount Gearbox

Short Description:

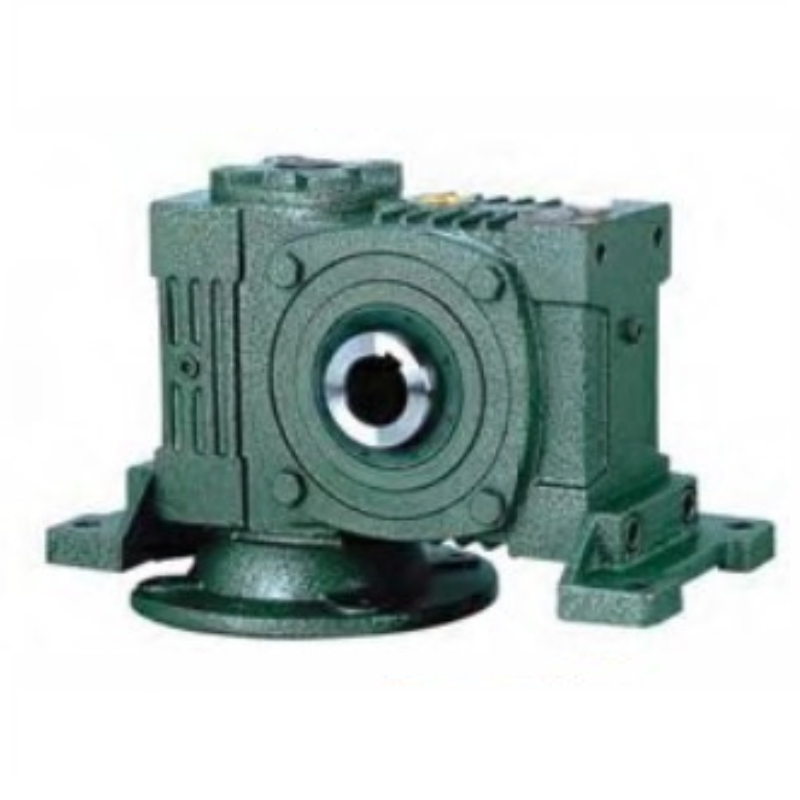

The single-stage reduction ratio range of Jiahuang WPWDKV worm gear reducer is 10:1 to 60:1, with an input speed of up to 1500 rpm and a working temperature range of -40 ° C to 40 ° C. Its main advantages include smooth operation, low noise, single thread design with self-locking function, and a multifunctional "universal" housing that supports multiple installation configurations and shaft direction choices.

Input power: 0.12~33.2kW
Size: 40, 50, 60, 70, 80, 100, 120, 135, 155, 175, 200, 250
Ratio: 10, 15, 20, 25, 30, 40, 50, 60
Color: green, blue, yellow, etc

CONTACT NOW Download

Product Detail

Product Tags

Product Introduction

With its strong adaptability and powerful torque output (ranging from 6 N.m to 6050 N.m), it is widely used in material handling, packaging, mining, and automation equipment.

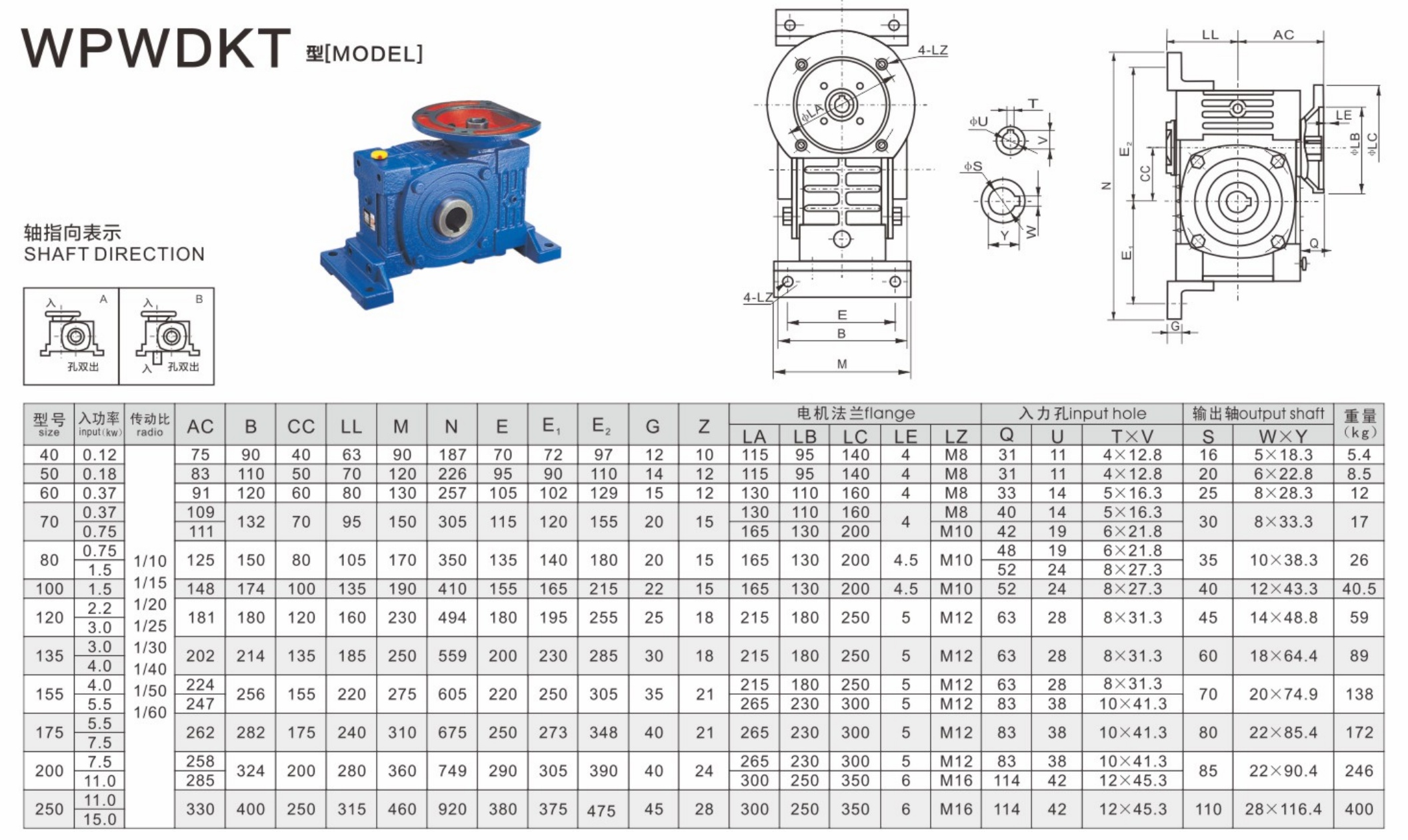

The main difference between Jiahuang WPWDKV and WPWDKT models lies in the output shaft configuration and specific design adjustments. The WPWDKV series typically uses solid output shafts and belongs to a broader "universal" design series, emphasizing installation flexibility and various I/O shaft positions. In contrast, WPWDKT models typically adopt different internal sealing solutions, shaft specifications, or housing details, which may be suitable for applications that require different interface options or environmental protection. Both share the core worm gear technology and have similar performance ranges in terms of transmission ratio, power, and torque.

Product Name:	WPWDKV Gearbox	Ratio:	10,15,20,25,30,40,50,60
Model No.	40,50,60,70,80,100,120,135,155,175,200,250	Color:	Customized
In Power:	0.06kw-15kw	Output Torque:	<1050nm
Shell Material:	Die-Cast Cast Iron	Worm Wheel:	9-4
Bearing:	WWI, C&U	Oil Seal:	KSK
Shaft:	Carbon Steel 45#	Packing:	Carton and Wooden Case
Warranty:	1 Year	Origin:	Hangzhou Zhejiang
