Jiahuang RV worm gear reducer: a masterpiece in the field of precision transmission

In modern industrial equipment, precision reducers are the core components of power transmission. Jiahuang Transmission’s RV series worm gear reducer has become the preferred power solution for efficient production in many industries due to its excellent performance and reliable quality.

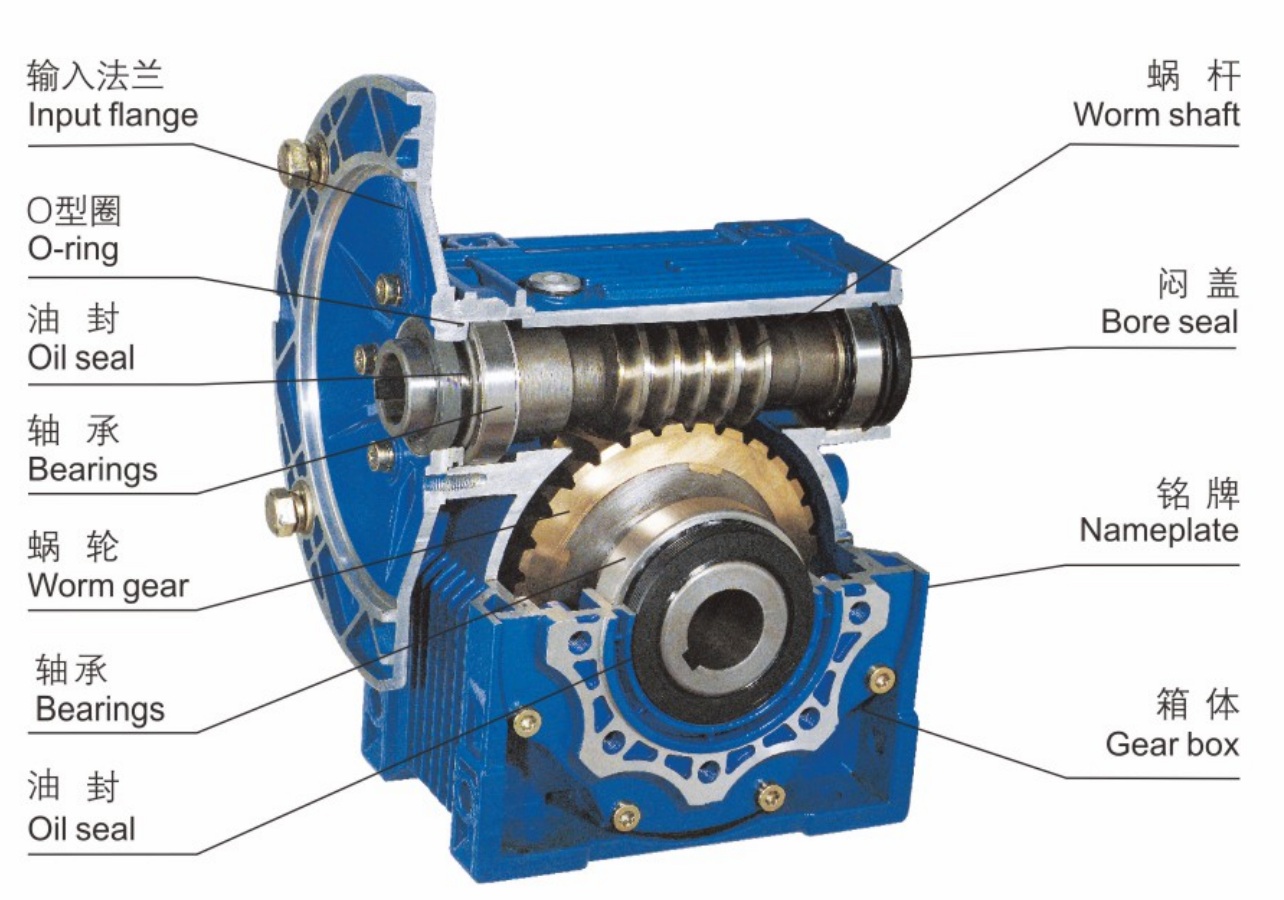

Working principle and structural characteristics

Worm gear transmission consists of a turbine and a worm, with the worm generally being the active component. Worm gears, like threads, can be divided into right-handed and left-handed, respectively referred to as right-handed worm gears and left-handed worm gears.

A worm with only one spiral line on it is called a single head worm, which means that when the worm rotates once, the turbine rotates one tooth; If there are two spiral lines on the worm, it is called a double headed worm, that is, when the worm rotates once, the turbine rotates two teeth.

Jiahuang Transmission’s RV reducer adopts high-quality aluminum alloy casting box, with compact structure, light weight and high mechanical strength. The box design has sufficient cooling ribs, which give the body excellent thermal conductivity, fast heat dissipation, and suitable for long-term operation.

Basic parameters and models

Jiahuang Transmission’s RV series reducers offer multiple models and specifications to meet the needs of different application scenarios:

Transmission speed ratio: 5-100 (single-stage)

Rated torque: 2.6N · m~1800N · m

Input power: 0.06KW~7.5KW

Gearbox specification numbers: 25, 30, 40, 50, 63, 75, 90, 110, 130, 150

Excellent performance characteristics

1.Compact mechanical structure, lightweight, small and efficient: adopting a "square box" shape structure, compact size, saves installation space.

2.Good heat exchange performance and fast heat dissipation: The box design has sufficient cooling ribs, excellent thermal conductivity, and is suitable for long-term operation.

3. Easy and flexible installation: It can be installed in all directions and can be installed on all six sides, adapting to various installation configuration requirements.
4. High transmission ratio and torque: With high overload capacity, it can meet the application requirements of high torque output.
5. Smooth operation and low noise: Due to the continuous and uninterrupted helical teeth of the worm gear, the meshing with the worm gear teeth is continuous and smooth, with low impact, vibration, and noise.
6. Strong applicability, high safety and reliability: It can work in ambient temperatures ranging from -40 ℃ to+40 ℃, with strong adaptability.
7. Long service life: allows low input speed range, large deceleration range, and durability.
8. Self locking function: When the helix angle of the worm is small, the worm can only drive the worm wheel for transmission, and the worm wheel cannot drive the worm to rotate. This characteristic makes it of great value in lifting operations.

Materials and Manufacturing Processes

Jiahuang Transmission’s RV series worm gear reducer strives for excellence in material selection and production technology:

• · Shell: Aluminum alloy (specification 25-90), made of high-quality aluminum alloy integrated casting, compact structure, saves space; Cast iron (specifications 110, 130, 150)
• · Worm: Made of 20Cr steel, treated with carbon and nitrogen co diffusion (after precision grinding, the tooth surface hardness is maintained at HRC60, and the hard layer thickness is greater than 0.5mm)
• · Worm gear: specially configured wear-resistant nickel bronze material with strong wear resistance and long service life
• · Surface treatment: First shot blasting treatment, then spray painting to improve appearance quality and corrosion resistance

Widely applicable in various fields

RV worm gear reducers are widely used in many industries and fields, including but not limited to:

Ceramics, food, tobacco, woodworking machinery, pharmaceuticals, textiles, leather, machine tools, glass, lifting, lifting, conveying, environmental protection, chemical industry, papermaking, packaging, warehousing and logistics, fluid equipment, beverages, plastic machinery, three-dimensional parking, automobile manufacturing, printing and dyeing machinery, power cable machinery, etc.

Why choose Jiahuang RV reducer?

Jiahuang RV series reducers draw on advanced technology from both domestic and international sources, and are designed and manufactured strictly in accordance with technical quality standards. We promise that every gearbox undergoes strict quality control to ensure high performance and long lifespan.

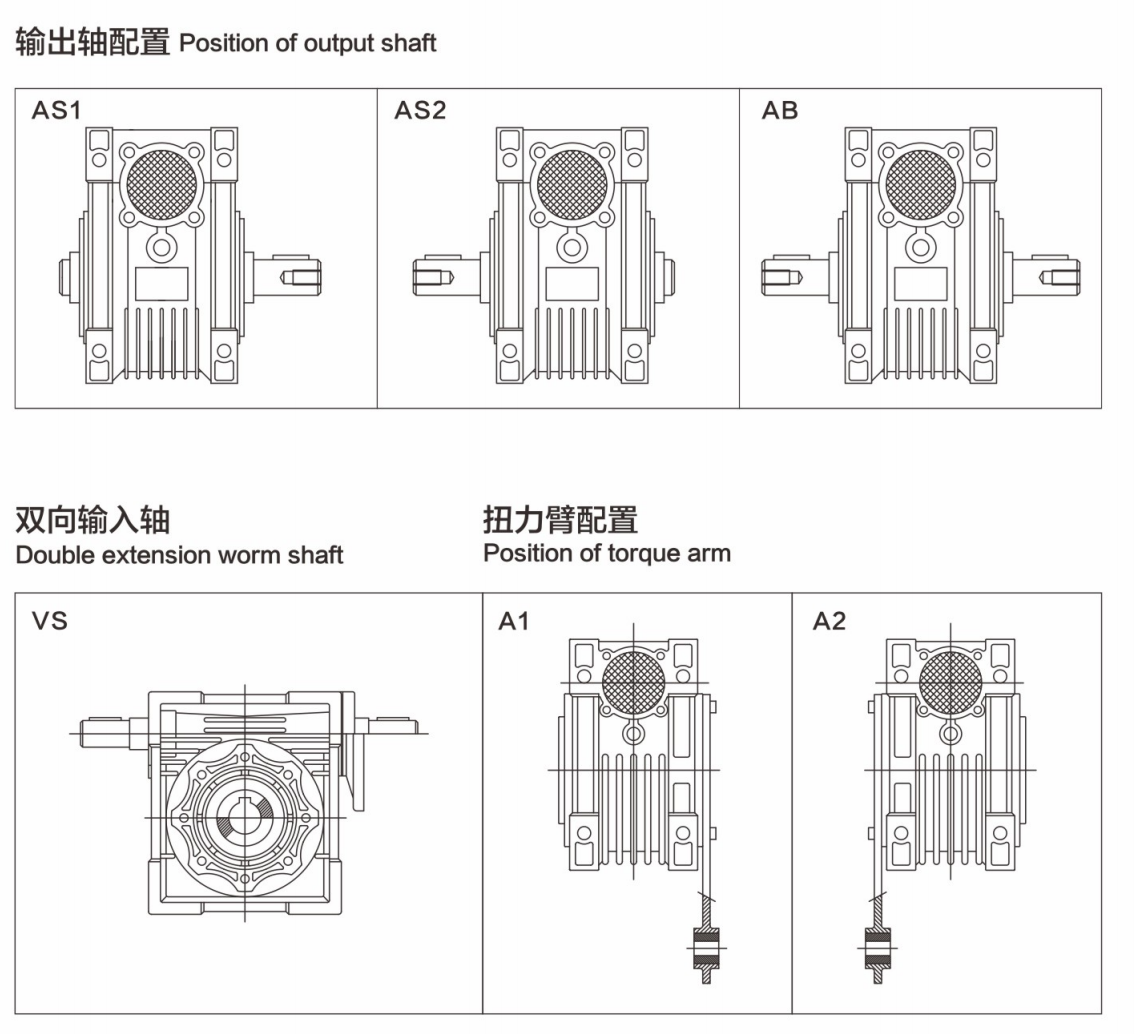

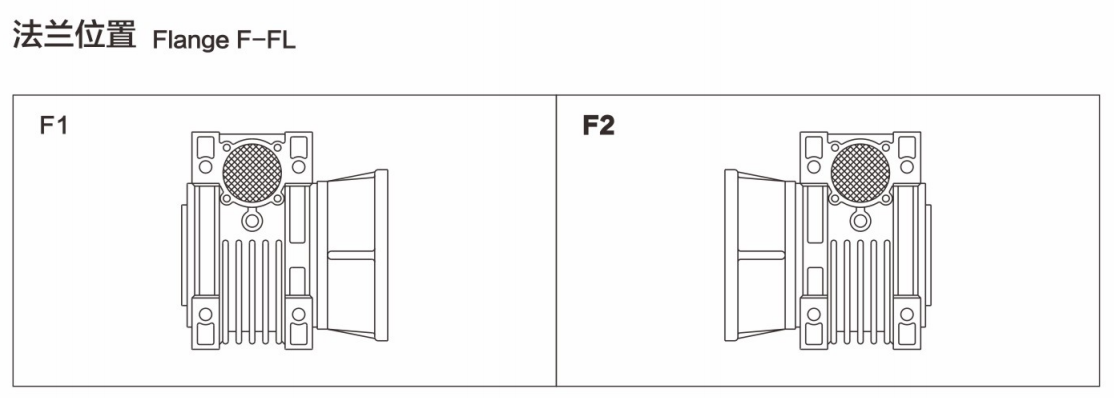

Our reducer has a modular combination design meeting various special needs. Jiahuang reducer provides various input forms (hole input, shaft input, extended worm shaft type) and output forms (hole output, one-way shaft output, two-way shaft output) to meet various installation and usage needs.

Jiahuang RV worm gear reducer has become the preferred control device for modern industrial equipment to achieve high speed ratio, low noise, and high stability mechanical reduction transmission due to its precise design, high-quality materials, and excellent performance.

Welcome industry customers to inquire. Jiahuang will provide you with comprehensive technical support and perfect after-sales service.
