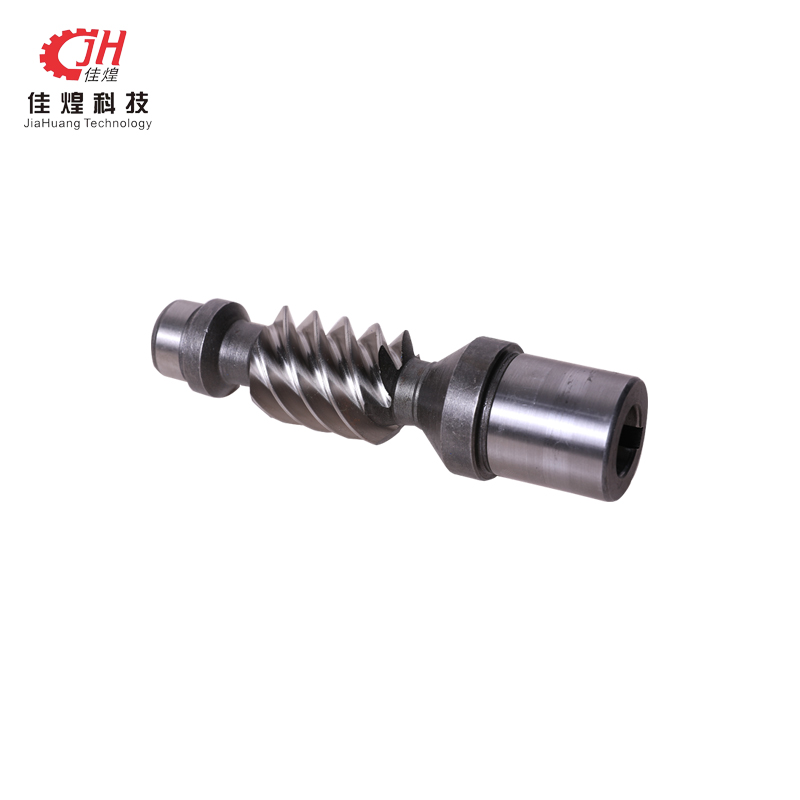

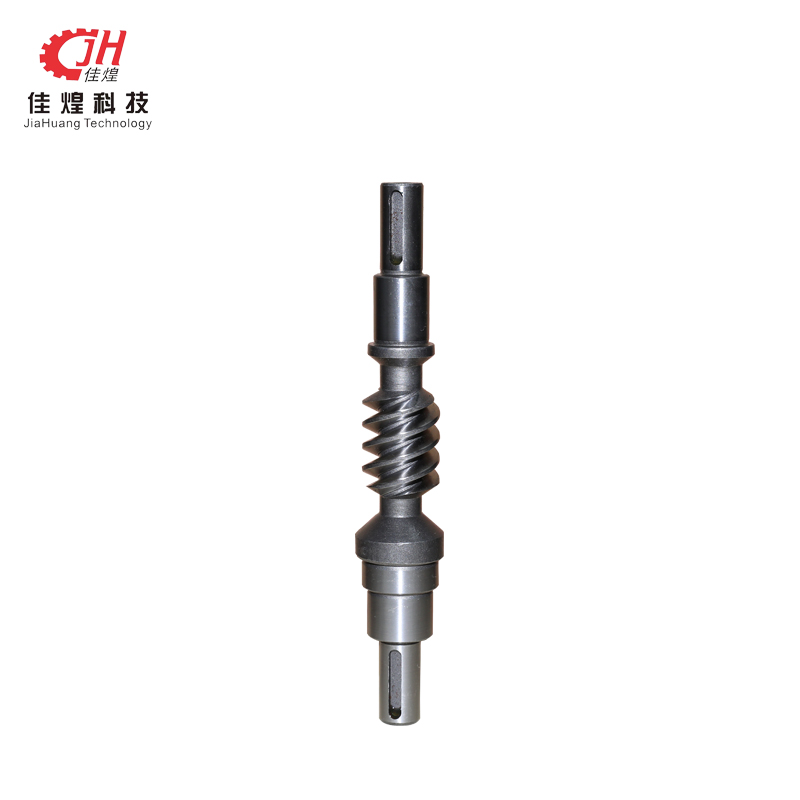

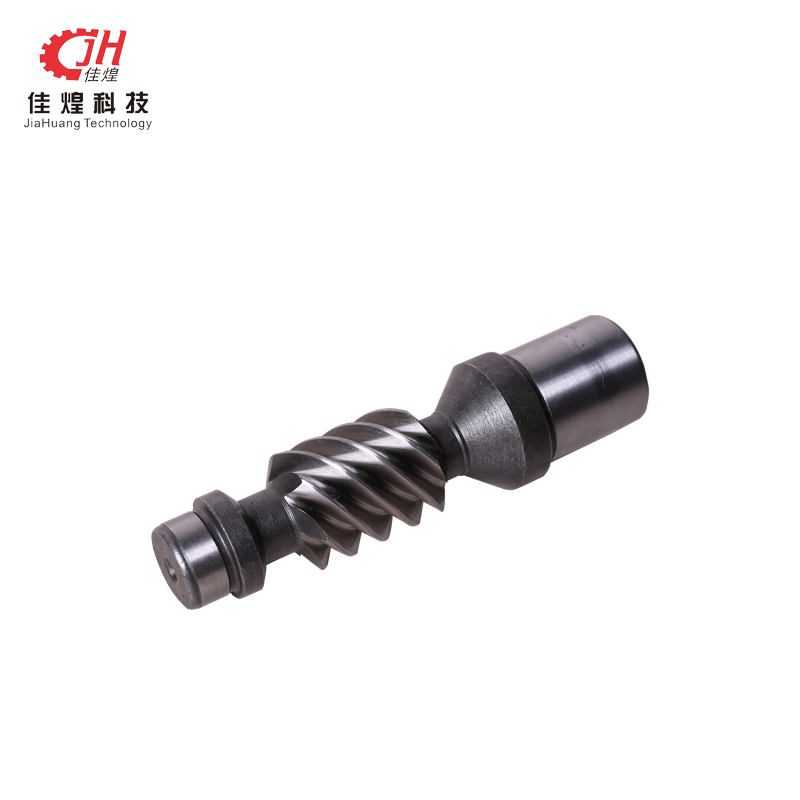

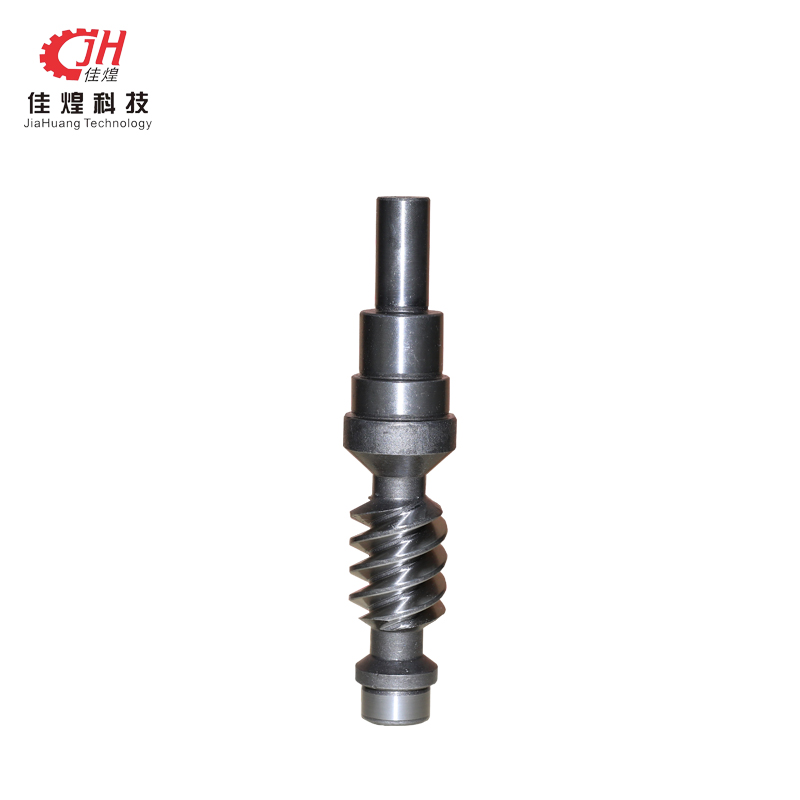

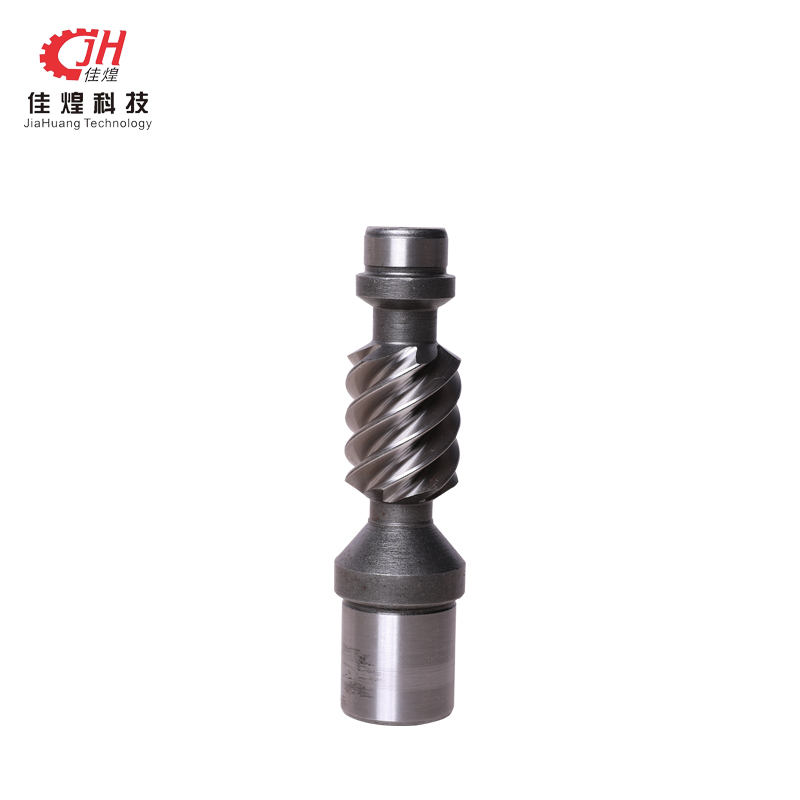

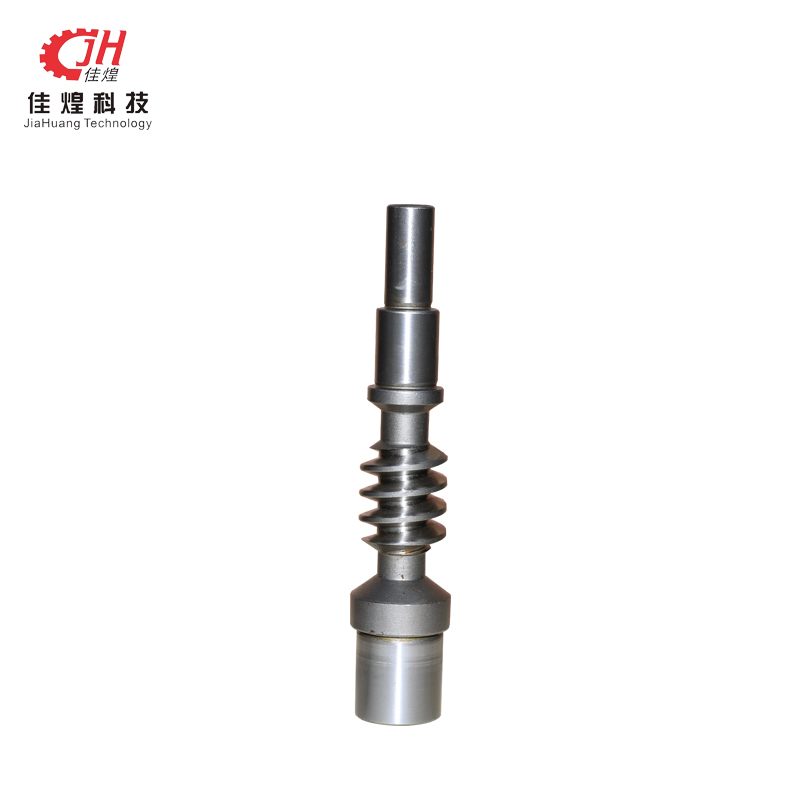

Worm Shaft

Worm Shaft
Location: China
Business Type: Manufacturer, Exporter
Brands: JIAHUANG
Certificate:
Terms of payment and delivery:
Minimum order quantity:
Price: Consultation
Delivery time:
Payment method:
0
Views: 414
t.guan@jiahuangtech.com

Technical Parameters

Device Description
中心距:Center Distance A 电机法兰Motor Flange 输入轴孔直径UA The Hole Diameter of Shaft
PAM IEC N M P 传动比ITransmission Ratio
5 7.5 10 15 20 25 30 40 50 60 80 100
NMRV025 56B14 50 65 80 9 9 9 9 9 / 9 9 9 9 / /
NMRV030 63B5 95 115 140 11 11 11 11 11 11 11 11 11 / / /
63B14 60 75 90
56B5 80 100 120 9 9 9 9 9 9 9 9 9 9 9 /
56B14 50 65 80
NMRV040 71B5 110 130 160 14 14 14 14 14 14 14 14 / / / /
71B14 70 85 105
63B5 95 115 140 11 11 11 11 11 11 11 11 11 11 11 11
63B14 60 75 90
56B5 80 100 120 / / / / / / / / 9 9 9 9
NMRV063 90B5 130 165 200 24 24 24 24 24 24 24 / / / / /
90B14 95 115 140
80B5 130 165 200 19 19 19 19 19 19 19 19 19 19 / /
80B14 80 100 120
71B5 110 130 160 / / / / / / / 14 14 14 14 14
71B14 70 85 105
NMRV075 100/11285 180 215 250 / 28 28 28 / / / / / / / /
100/112B14 110 130 160
90B5 130 165 200 / 24 24 24 24 24 24 24 / / / /
90B14 95 115 140
80B5 130 165 200 / / / / 19 19 19 19 19 19 19 19
80B14 80 100 120
71B5 110 130 160 / / / / / / / 14 14 14 14 14
NMRV090 100/11285 180 215 250 / 28 28 28 28 28 28 / / / / /
100/112B14 110 130 160
90B5 130 165 200 / 24 24 24 24 24 24 24 24 24 / /
90B14 95 115 140
80B5 130 165 200 / / / / 19 19 19 19 19 19 19 19
80B14 80 100 120
NMRV110 132B5 230 265 300 / 38 38 38 38 / / / / / / /
132B14 130 165 200
100/11285 180 215 250 / 28 28 28 28 28 28 28 28 28 / /
90B5 130 165 200 / / / / / 24 24 24 24 24 24 24
90B14 95 115 140
80B5 130 165 200 / / / / / / / / / / 19 19
NMRV130 132B5 230 265 300 / 38 38 38 38 38 38 38 / / / /
132B14 130 165 200
100/11285 180 215 250 / / / / / 28 28 28 28 28 / /
90B5 130 165 200 / / / / / / / / / / 24 24
90B14 95 115 140
NMRV150 160B5 250 300 350 / 42 42 42 42 42 / / / / / /
132B5 230 265 300 / / / / 38 38 38 38 38 / / /
132B14 130 165 200
100/112B5 180 215 250 / / / / / / / / 28 28 28 28

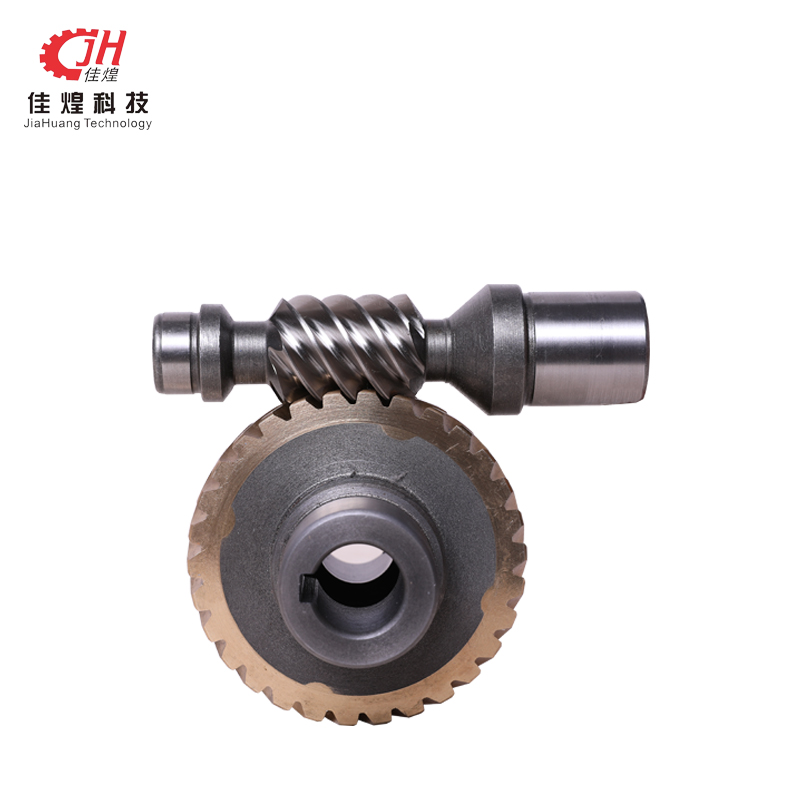

A worm drive is a gear arrangement in which a Worm Shaft(which is a gear in the form of a screw) meshes with a worm gear (which is similar in appearance to a spur gear). The two elements are also called the worm screw and worm wheel. Worm Shaft and worm gear are used together to achieve high speed reduction ratios.

Our advantage

captcha

Faq

Q:HOW LONG CAN I GET THE FEEDBACKS AFTER WE SENT THE INQUIRY?

A:We will reply you within 1 hours in working day.

Q:ARE YOU A DIRECT MANUFACTURER OR TRADING COMPANY?

A:We have our own factories, and we also have our ...

Q:WHAT PRODUCTS CAN YOU OFFER?

A:We mainly produce RV reducer, WP reducer and its...

Q:WHAT APPLICATIONS DO YOUR PRODUCTS RELATE TO?

A:Our products cover almost the whole equipment ma...

Q:CAN YOU DO CUSTOMIZED PRODUCTS?

A:Yes, we have a strong technical team to produce ...
