RV output flange Manufacturers

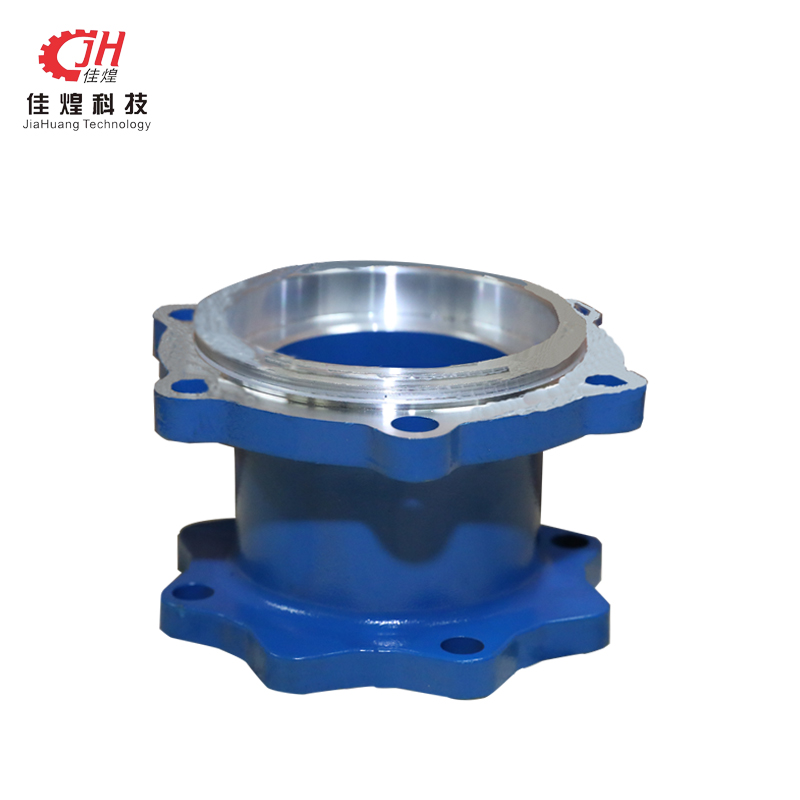

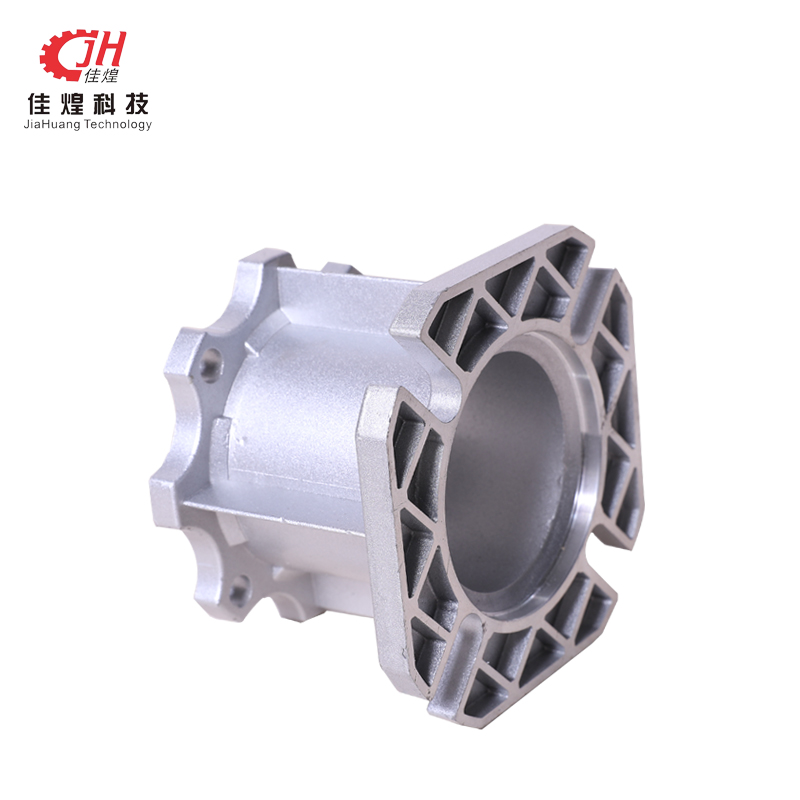

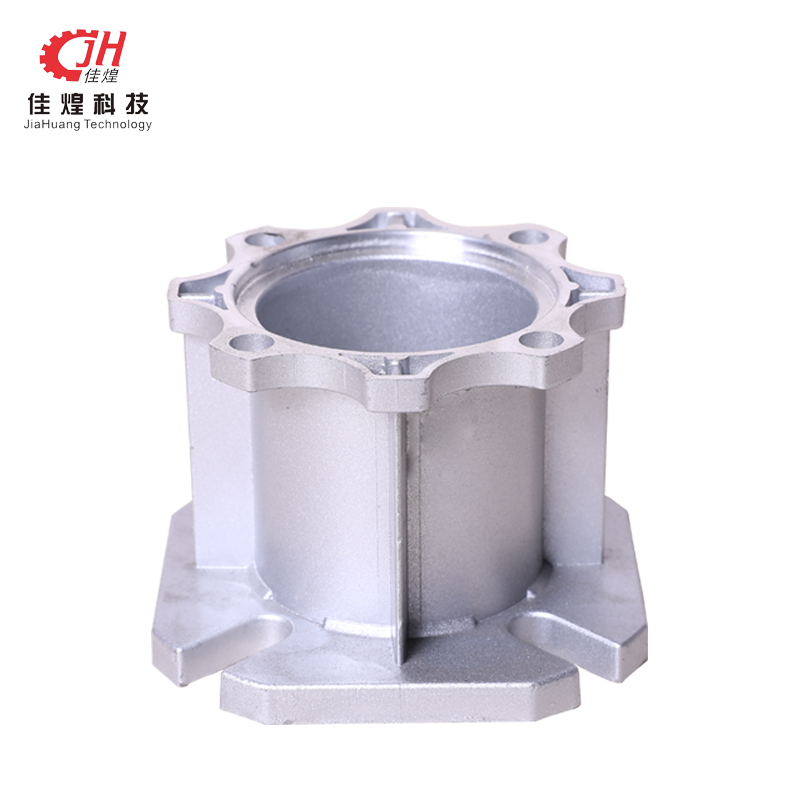

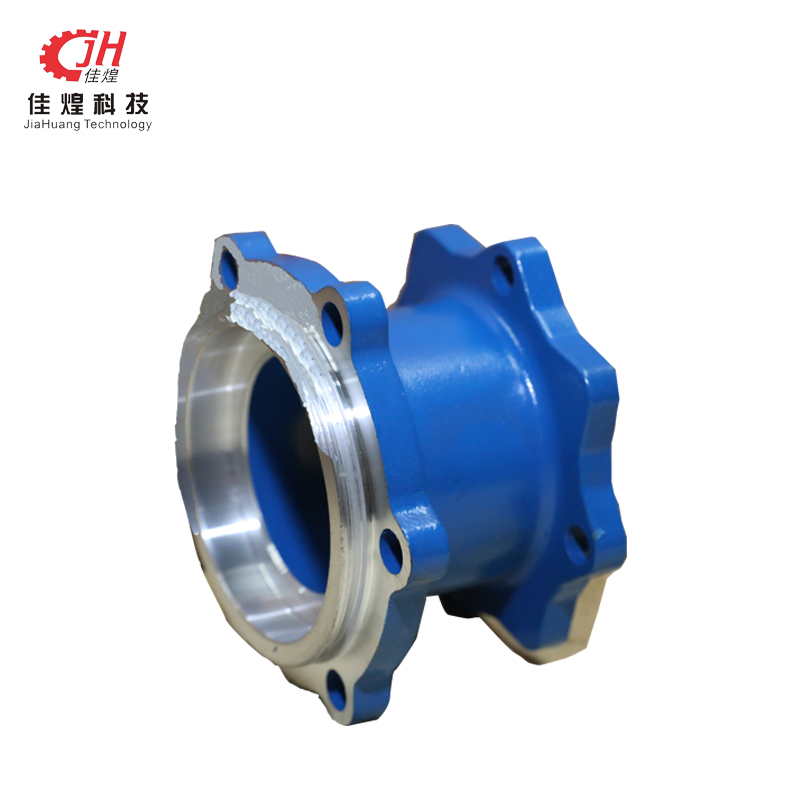

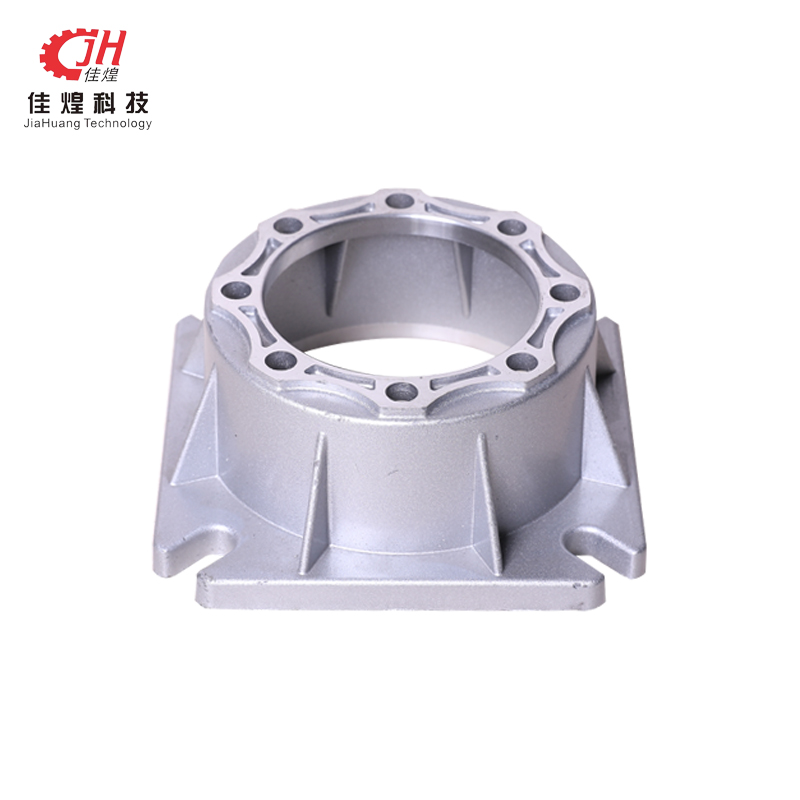

RV output flange

RV output flange
Location: China
Business Type: Manufacturer, Exporter
Brands: JIAHUANG
Certificate:
Terms of payment and delivery:
Minimum order quantity:
Price: Consultation
Delivery time:
Payment method:
0
Views: 109
t.guan@jiahuangtech.com

Technical Parameters

Device Description
中心距:Center Distance A 电机法兰Motor Flange 输入轴孔直径UA The Hole Diameter of Shaft
PAM IEC N M P 传动比ITransmission Ratio
5 7.5 10 15 20 25 30 40 50 60 80 100
NMRV025 56B14 50 65 80 9 9 9 9 9 / 9 9 9 9 / /
NMRV030 63B5 95 115 140 11 11 11 11 11 11 11 11 11 / / /
63B14 60 75 90
56B5 80 100 120 9 9 9 9 9 9 9 9 9 9 9 /
56B14 50 65 80
NMRV040 71B5 110 130 160 14 14 14 14 14 14 14 14 / / / /
71B14 70 85 105
63B5 95 115 140 11 11 11 11 11 11 11 11 11 11 11 11
63B14 60 75 90
56B5 80 100 120 / / / / / / / / 9 9 9 9
NMRV063 90B5 130 165 200 24 24 24 24 24 24 24 / / / / /
90B14 95 115 140
80B5 130 165 200 19 19 19 19 19 19 19 19 19 19 / /
80B14 80 100 120
71B5 110 130 160 / / / / / / / 14 14 14 14 14
71B14 70 85 105
NMRV075 100/11285 180 215 250 / 28 28 28 / / / / / / / /
100/112B14 110 130 160
90B5 130 165 200 / 24 24 24 24 24 24 24 / / / /
90B14 95 115 140
80B5 130 165 200 / / / / 19 19 19 19 19 19 19 19
80B14 80 100 120
71B5 110 130 160 / / / / / / / 14 14 14 14 14
NMRV090 100/11285 180 215 250 / 28 28 28 28 28 28 / / / / /
100/112B14 110 130 160
90B5 130 165 200 / 24 24 24 24 24 24 24 24 24 / /
90B14 95 115 140
80B5 130 165 200 / / / / 19 19 19 19 19 19 19 19
80B14 80 100 120
NMRV110 132B5 230 265 300 / 38 38 38 38 / / / / / / /
132B14 130 165 200
100/11285 180 215 250 / 28 28 28 28 28 28 28 28 28 / /
90B5 130 165 200 / / / / / 24 24 24 24 24 24 24
90B14 95 115 140
80B5 130 165 200 / / / / / / / / / / 19 19
NMRV130 132B5 230 265 300 / 38 38 38 38 38 38 38 / / / /
132B14 130 165 200
100/11285 180 215 250 / / / / / 28 28 28 28 28 / /
90B5 130 165 200 / / / / / / / / / / 24 24
90B14 95 115 140
NMRV150 160B5 250 300 350 / 42 42 42 42 42 / / / / / /
132B5 230 265 300 / / / / 38 38 38 38 38 / / /
132B14 130 165 200
100/112B5 180 215 250 / / / / / / / / 28 28 28 28
